Variations Mechanical And Underbody

Back to variations menu page.

Variations – Mechanical And Underbody

image001_0 image002_0

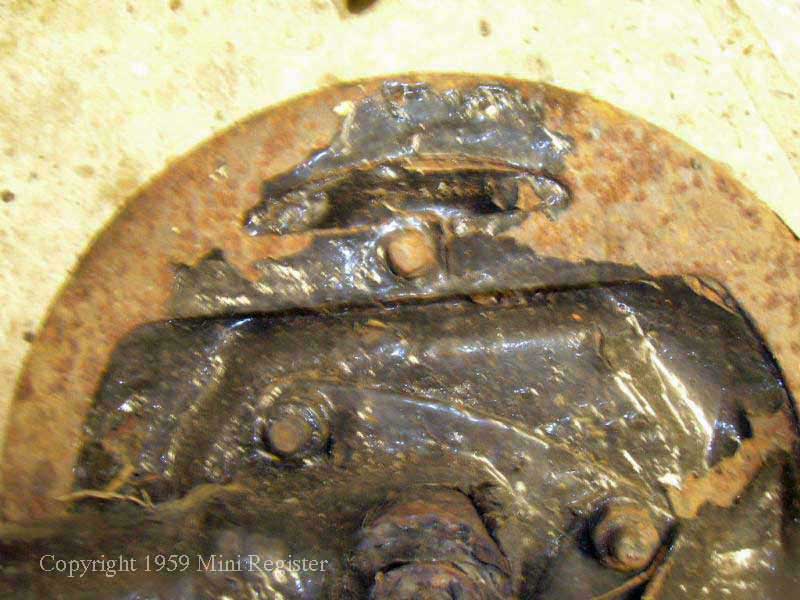

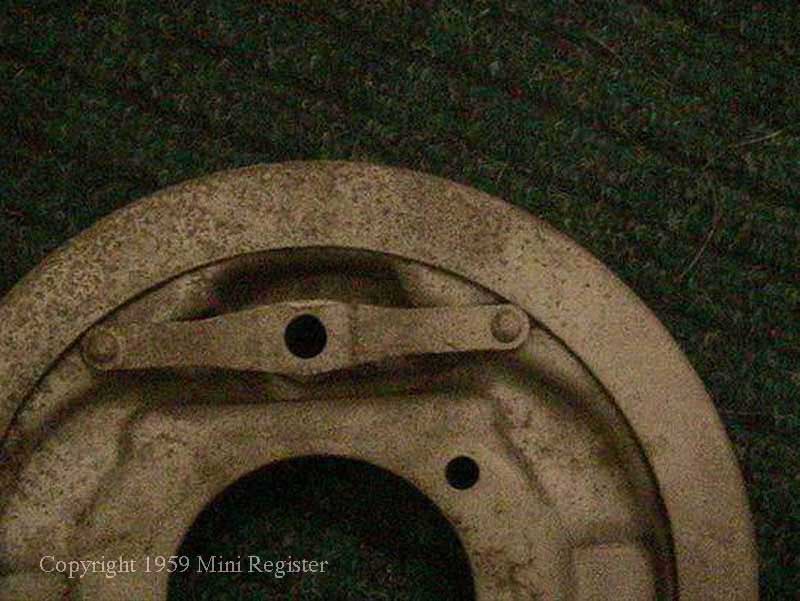

59 brake back plates had a riveted adjuster strap. Later back plate with integrated adjuster strap in the back plate.
image003_0 image004_0

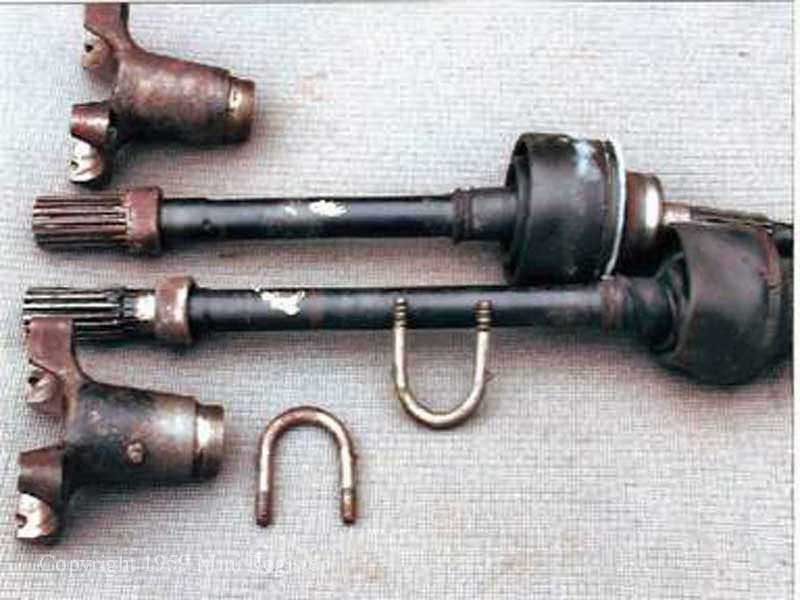

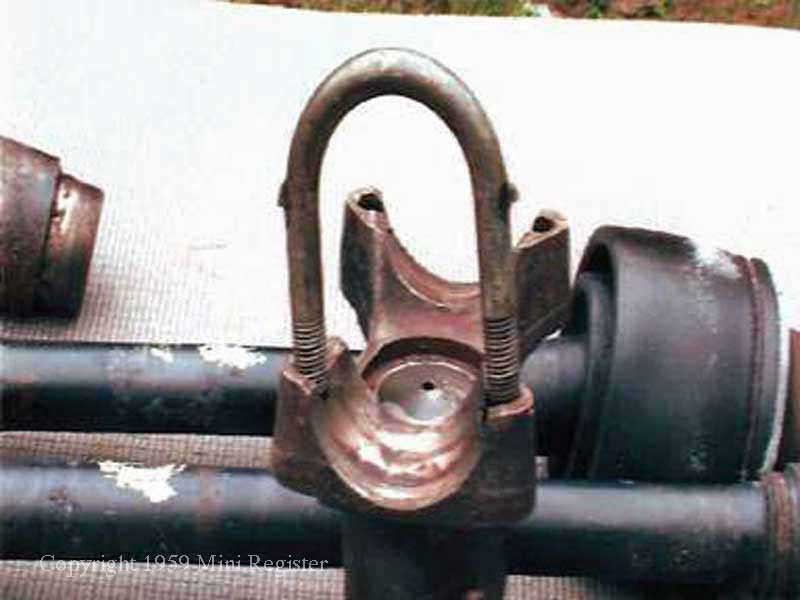

59 type Drive Shafts off an early car in Denmark. Note the gearbox end with metal screw fixings to the flange instead of the normal rubber gaiter. There are also grease nipples on the rubber cross coupling flanges. The U bolts to go with the early drive shafts have fish hooks on them to stop over tightening. However as the rubber softened it was impossible to keep the U bolt tight against the rubber cross.
image005_0 image006_0

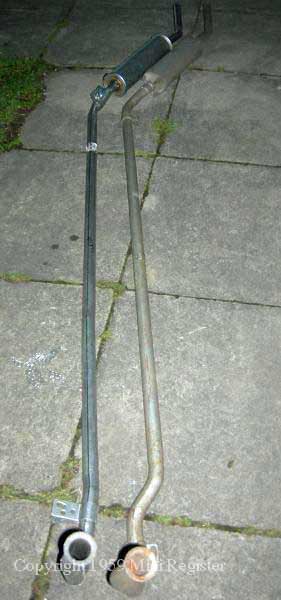

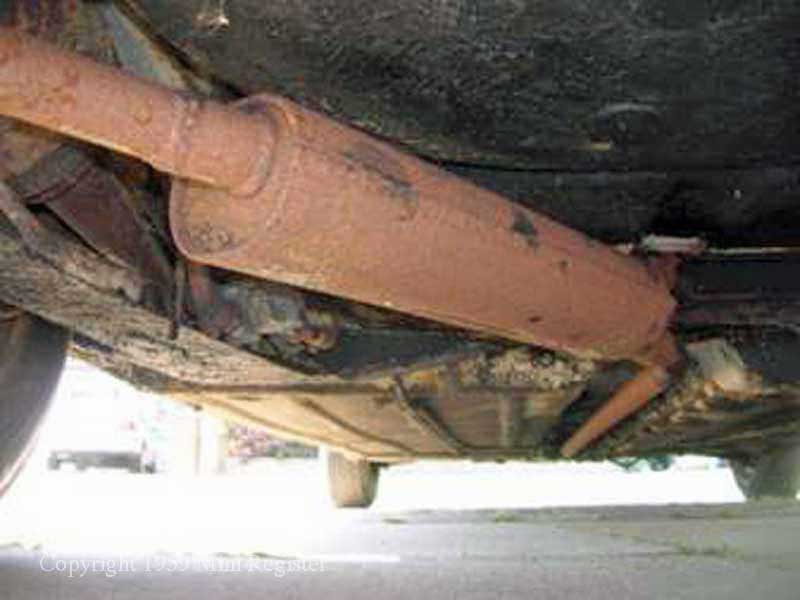

Early exhaust with kink for the starter button. These were single box systems in one piece. Correct style silencer.

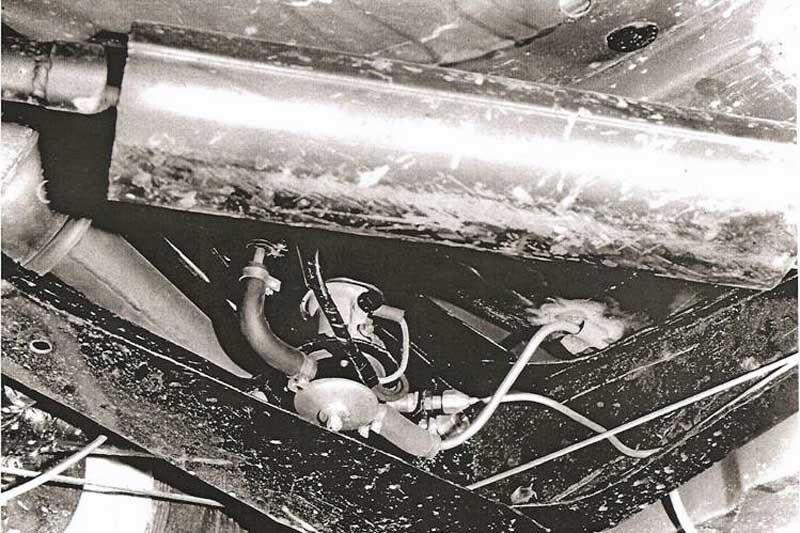

image007_0 A photograph of a pre-production car showing the silencer in place. Also the PD fuel pump is clearly visible in the correct position.
image008_0 image009_0

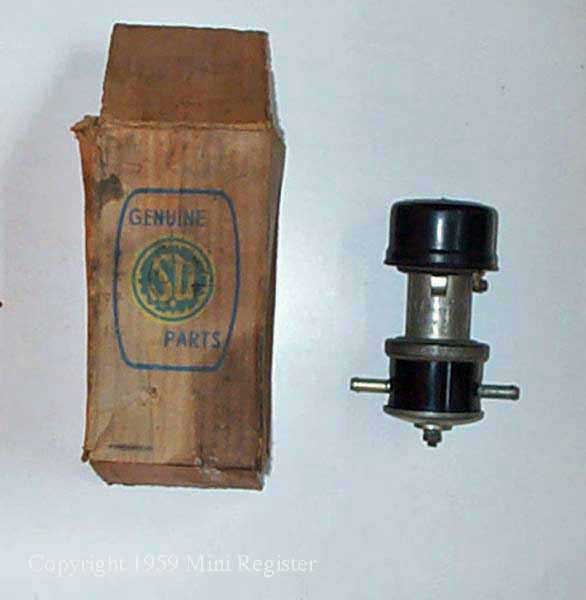

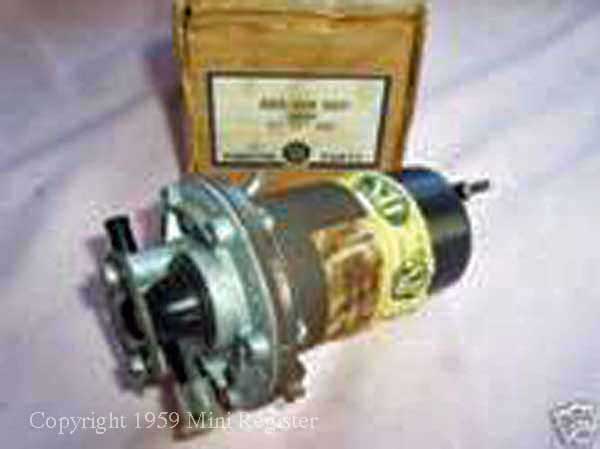

A PD style fuel pump off the car. This pump was used on all 59 cars. A PF type pump replaced the PD.

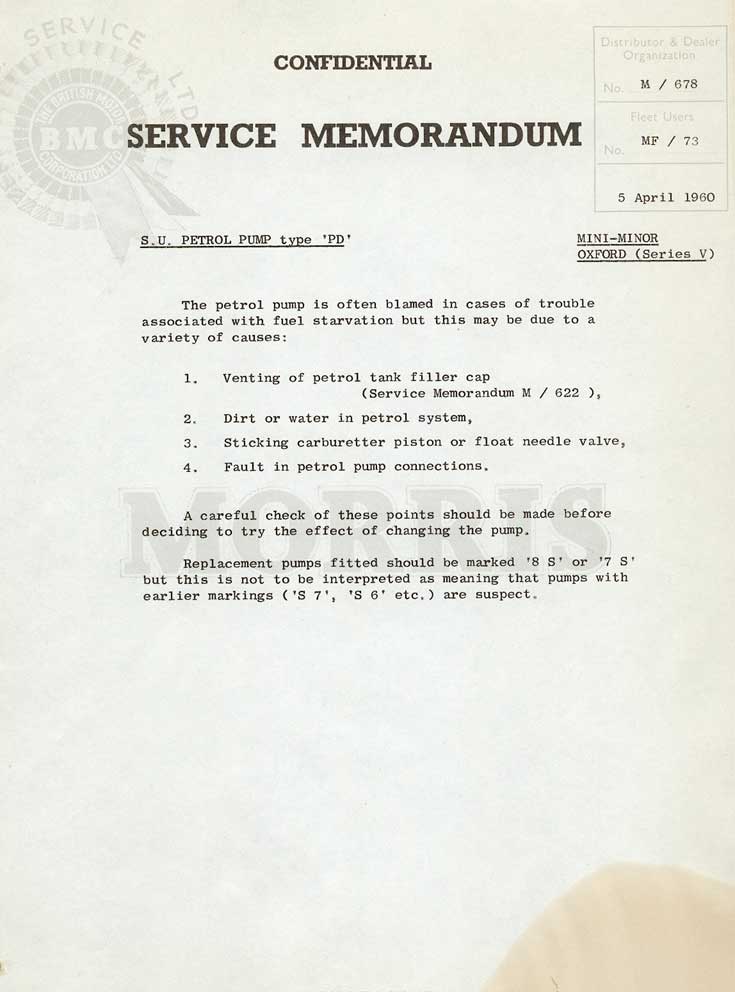

image010_0 A Memo from April 1960 about poor PD pump performance being possibly caused elsewhere.
image011_0 image012

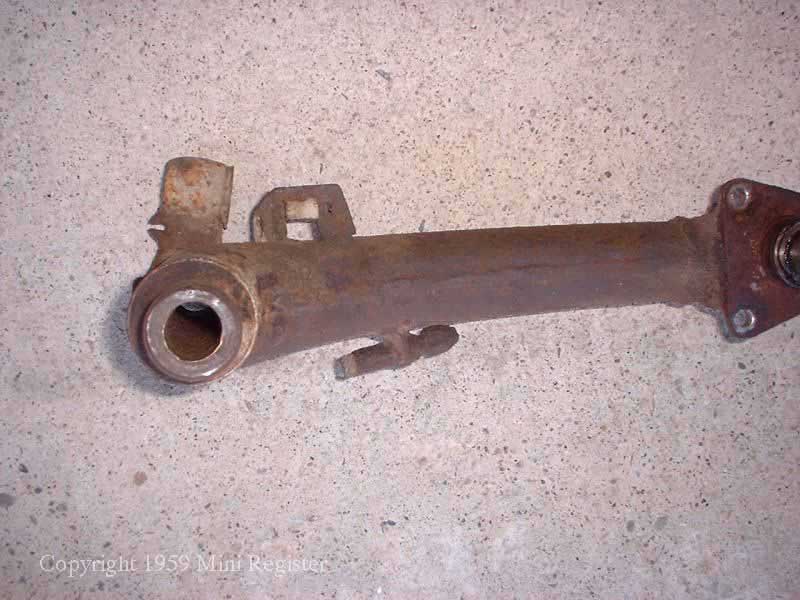

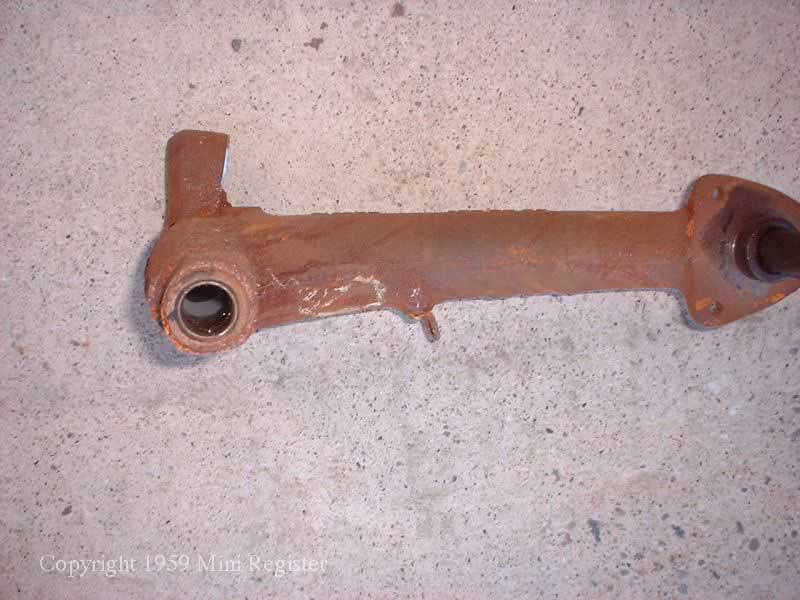

Up to October 59 style radius arm with no pivoting quadrant for the handbrake cable. Welded steel arms were used on all 59’s. A normal welded steel radius arm with the quadrant removed.
image013 image014

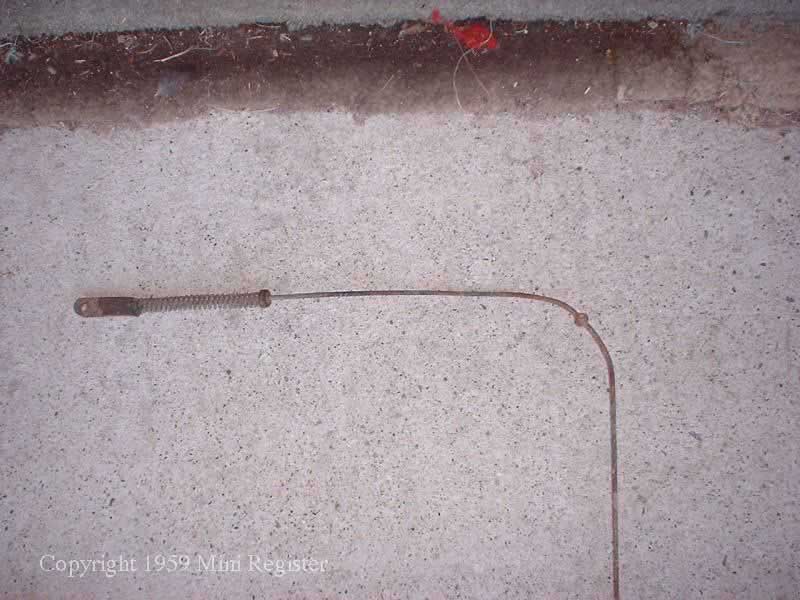

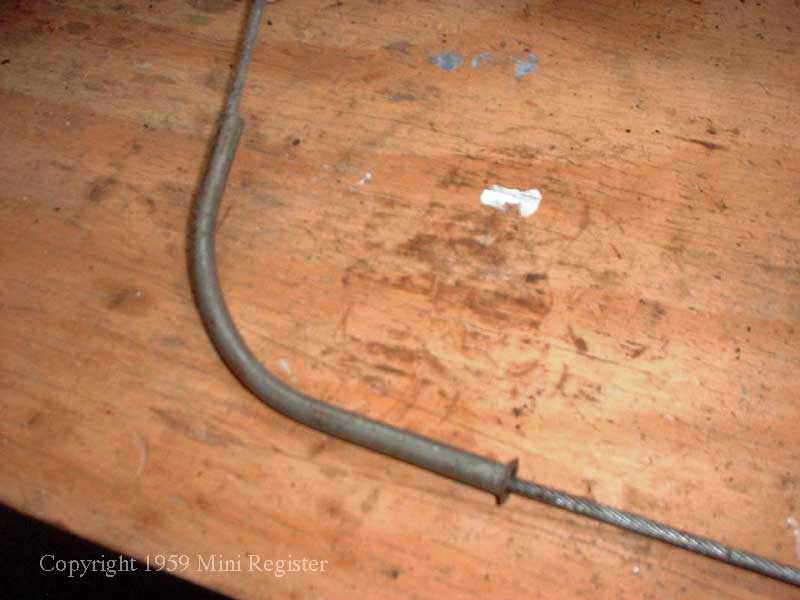

Early handbrake cable with tube for cable to bend round instead of having the pivoting quadrant. These filled with road dirt and stopped working. A normal handbrake cable showing the nipple in place to locate on the quadrant.

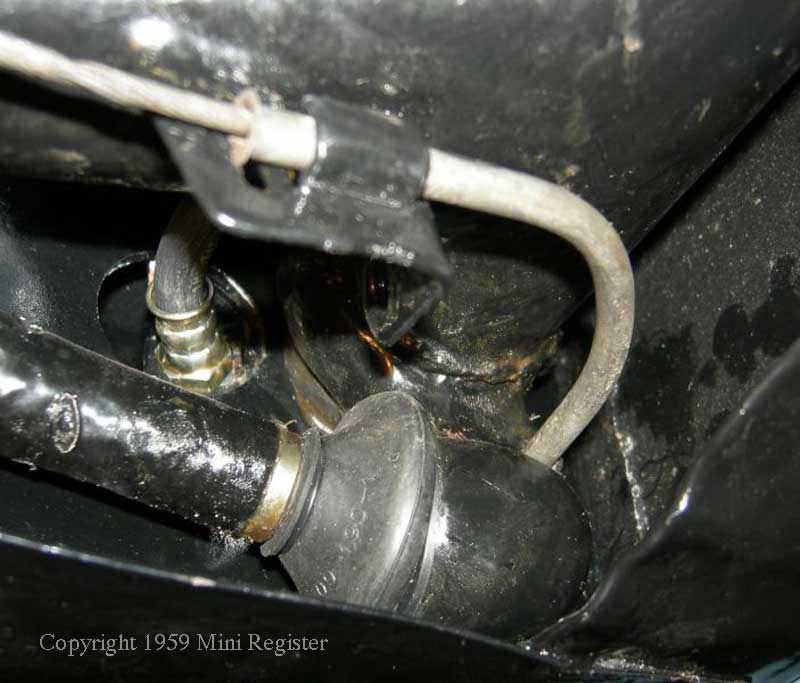

image015 Picture showing the non-pivoting hand brake cable in place.
image001 image002

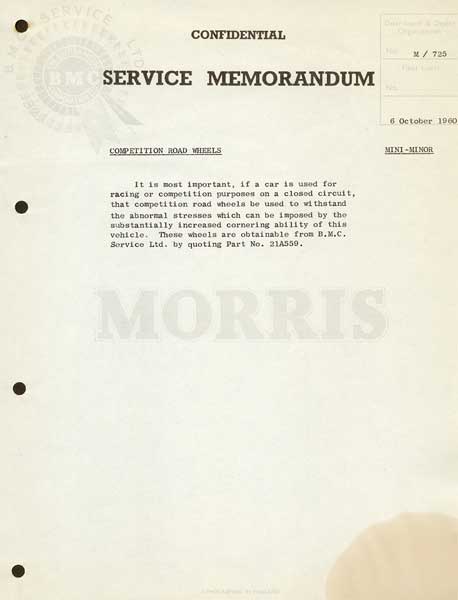

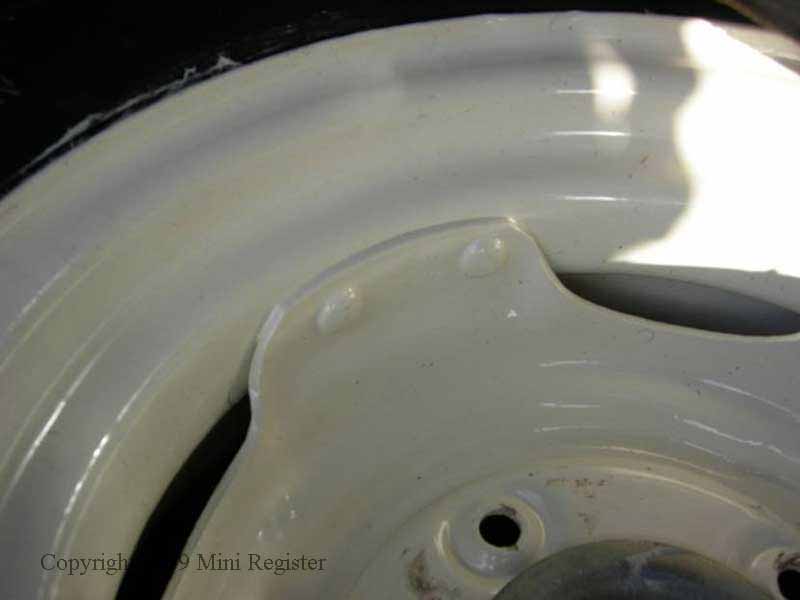

Riveted wheels were fitted to all 59 cars. A service memo stressing the importance of replacing the riveted wheels if competition driving was planned.  In road use the wheels were perfectly strong enough.

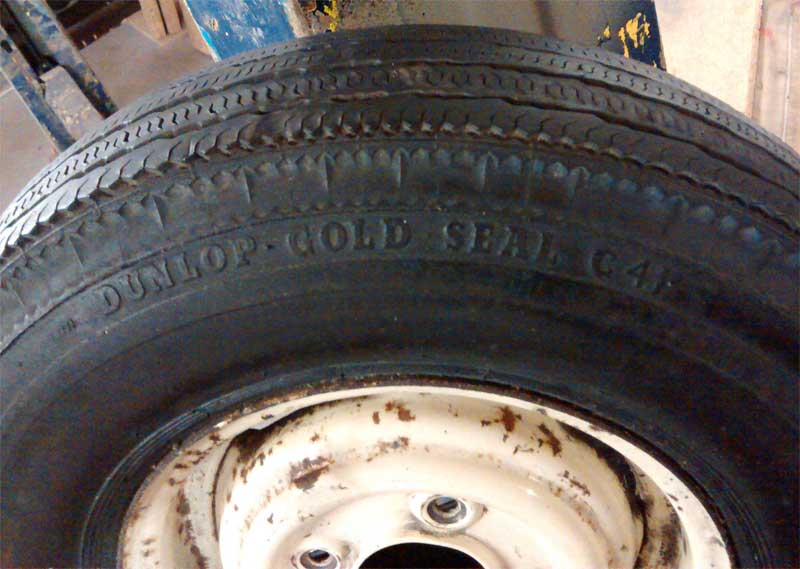

rivet-wheel The correct Dunlop C41 type tyre fitted to all UK and export 1959 Minis.  CKD cars could have locally sourced tyres.
image004 image005

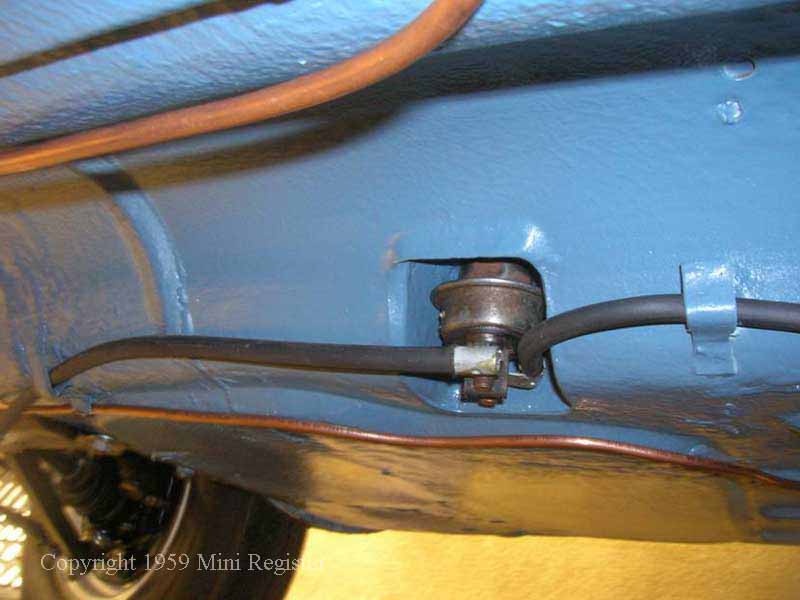

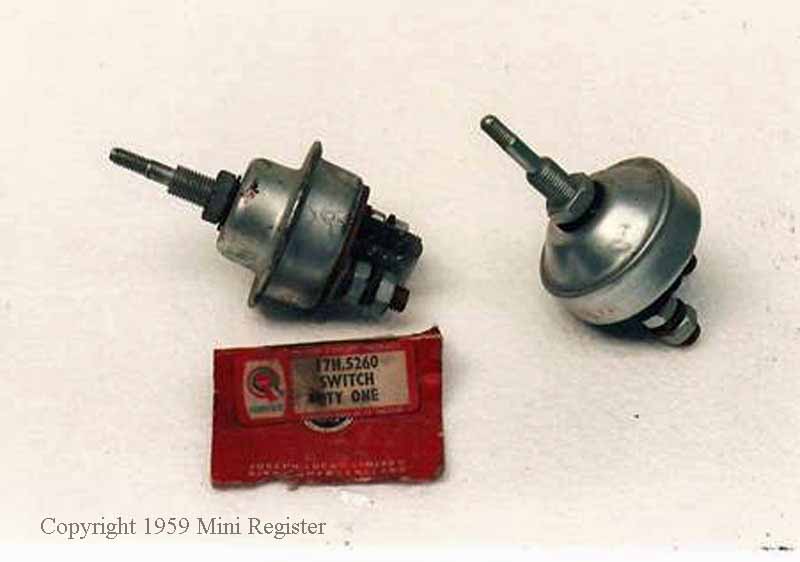

Floor starter button from underneath the car. Early style floor start switch is on the left.
image006 image007

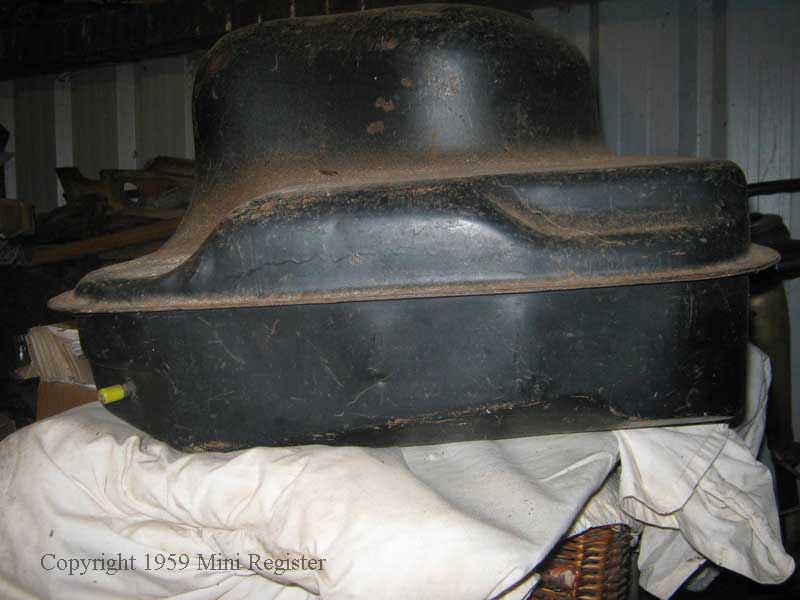

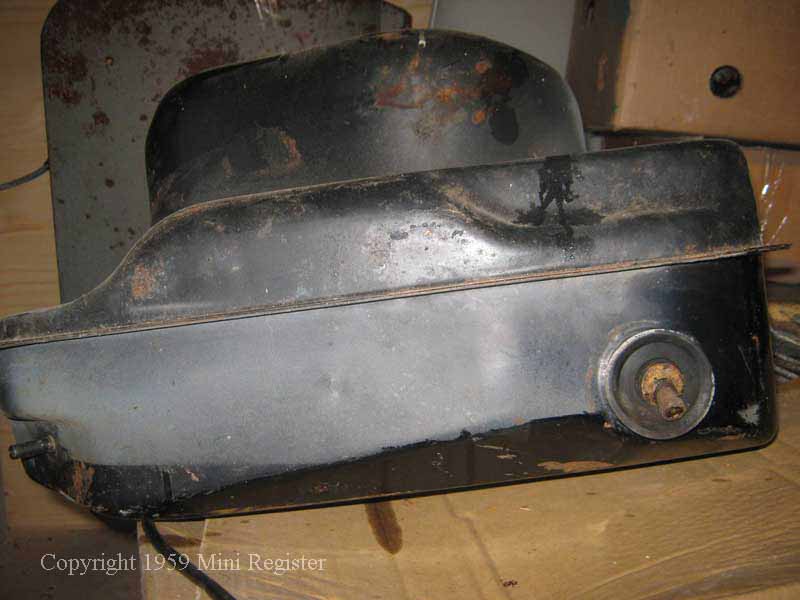

All 59 type petrol tanks do without a floor drain. A Jan 60> fuel tank showing the drain through the boot floor.
image008 image009

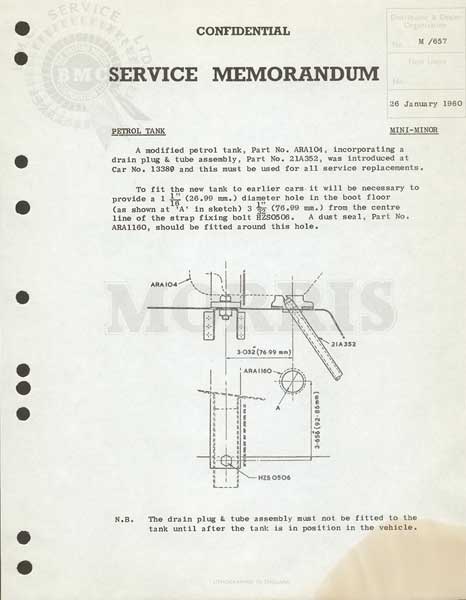

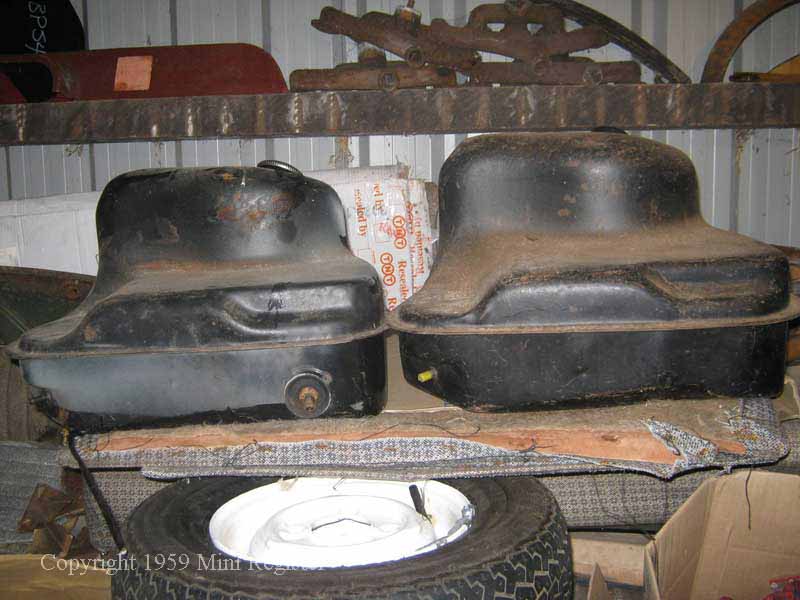

Both types of tank next to each other. A memo explaining the adoption of the new fuel tank.

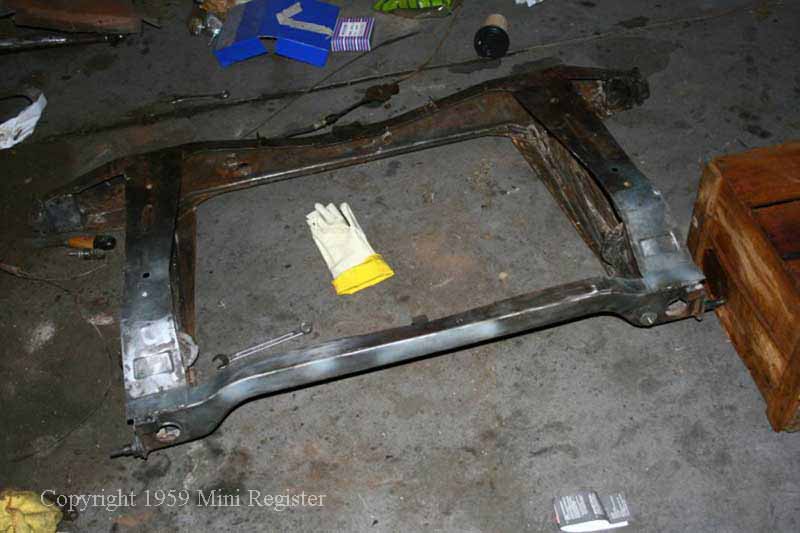

image010 Correct 1959 rear subframe has no provision for the hydrolastic pipes found on normal frames, this was later readopted for late Rover subframes.  There are a number of differences between the subframes but too many to list here.

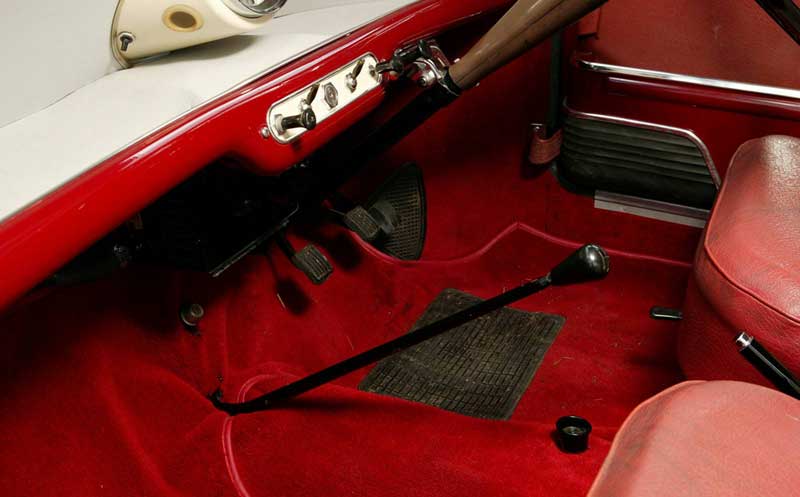

gearstick-800 All 1959 cars have a straight black gear lever, the cranked lever was introduced in October 1960.
wiper1 wiper2

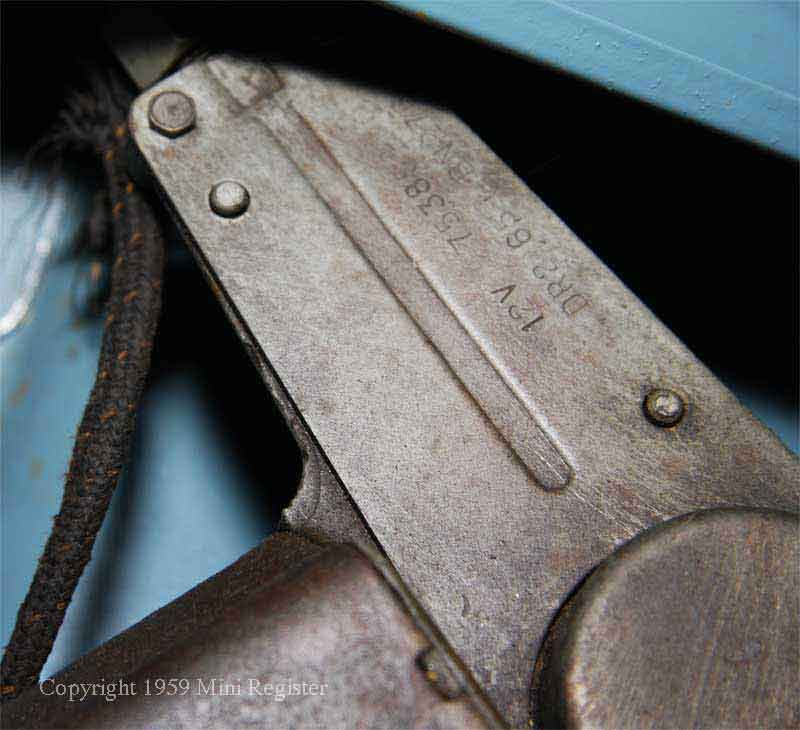

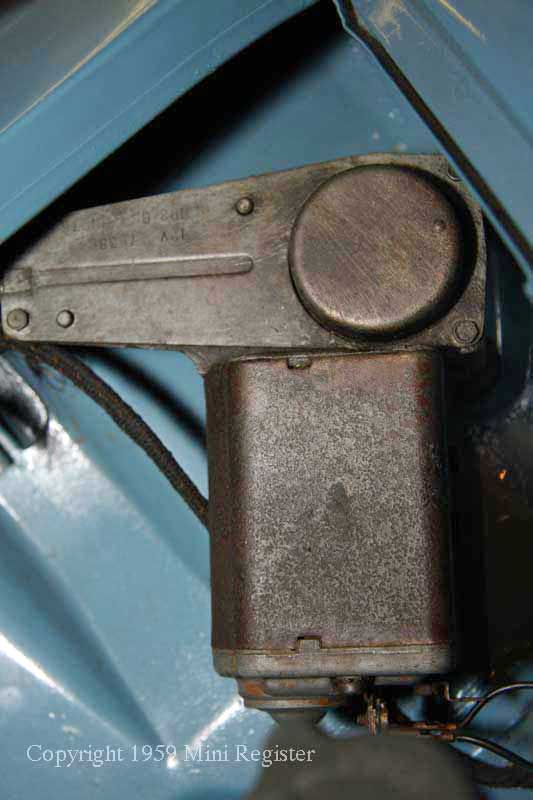

Correct DR2 wiper motor without park switch.
